USB-C has become ubiquitous in modern technology, powering everything from smartphones to laptops and cameras. Its small, reversible connector offers numerous advantages over older USB standards, including faster data transfer speeds, higher power delivery capabilities, and increased versatility. But have you ever wondered what's happening inside those tiny connectors?
In this article, we'll delve into the wiring of USB-C cables, focusing primarily on the positive and negative wires. Understanding their roles and designations will help ensure safe and efficient use of USB-C technology in your devices and projects. Let's dive in!
What Are USB C Positive and Negative Wires?
USB-C positive and negative wires are critical components in USB-C cables, playing a pivotal role in both power and data transmission. In this section, we'll explore what these wires are and how they contribute to the functionality of USB-C cables.
- USB-C Positive Wire
The positive wire in a USB-C cable carries the power or voltage required to charge devices or power peripheral devices. It's typically colored red in USB-C cable color coding and connects to the VBUS (Voltage Bus) pin in the USB-C connector, supplying power to the connected device. Although it primarily handles power, it also indirectly supports data transmission by enabling the electrical circuitry necessary for data lines to function optimally. However, data transmission occurs independently of the negative wire via separate channels like TX1+/D1+/RX2+ and their corresponding negative counterparts.
- USB-C Negative Wire
The negative wire serves as the return path for the current flowing through the positive wire, completing the electrical circuit. It is usually black in color and connects to the Ground (GND) pins within the USB-C connector. This connection ensures proper grounding, which enhances electrical stability and supports reliable data transmission. By stabilizing the system, the negative wire helps maintain consistent data signals, ensuring smooth communication between connected devices.
How Do Positive and Negative Wires Facilitate Power Transmission?
Efficient power transmission in any USB cable relies on the collaboration of the positive and negative wires. The positive wire carries power from the source to the device being charged or powered, while the negative wire provides the return path for the current, completing the circuit. This ensures uninterrupted and stable power flow from the source to the device. Together, these wires ensure that devices receive the necessary power safely and effectively.
How Do Positive and Negative Wires Facilitate Data Transmission?
In addition to power transmission, USB-C cables are widely used for data transfer between devices. Here's how the positive and negative wires contribute to this process:
- Power for Data Transmission: While primarily handling power, the positive and negative wires also play a role in powering the electronics within the cable that manage data transfer.
- Signal Integrity: These wires help maintain the integrity of data signals during transmission, ensuring reliable and accurate data transfer between devices like computers, smartphones, printers, and monitors.
- Supporting Data Lines: USB-C cables contain additional wires dedicated to data transmission, such as USB 3.0 Data+ (D+) and USB 3.0 Data- (D-), which offer faster transfer speeds compared to USB 2.0. The positive and negative wires support these high-speed data lines by providing the necessary power and grounding, mitigating electrical noise and interference for reliable data exchange. For more details on USB data transmission standards, click here.
In summary, the positive and negative wires in USB-C cables are essential for both power delivery and data transmission. The positive wire carries the power required by devices, while the negative wire completes the circuit, ensuring stable power flow. Together, they also support data transmission by maintaining signal integrity and providing the necessary electrical environment for reliable data exchange.
Understanding USB C Cable Construction
USB-C cables are designed to support high-speed data transfer, power delivery, and video output within a compact and reversible connector. To fully grasp how USB-C cables achieve this, let's explore their structure, materials, and how the positive and negative wires are integrated into the overall design.

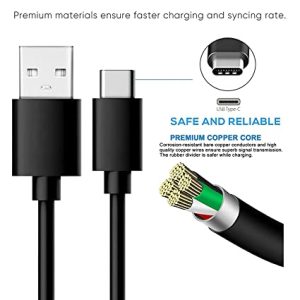

USB-C Cable Structure
A typical USB-C cable comprises multiple layers and components, each serving a specific purpose to ensure optimal performance. The outermost layer, usually made of durable and flexible materials like PVC (Polyvinyl Chloride) or TPE (Thermoplastic Elastomer), protects the internal components from physical damage and environmental factors.
Below the outer jacket, there are layers of shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI). Common types of shielding include:
- Braided Shield: A mesh of conductive material (usually copper or aluminum) that guards against EMI and RFI.
- Foil Shield: A layer of aluminum foil that adds extra protection against interference.
For more detailed insights into USB cable structure, check out our related blog post.
Inside the cable, individual wires are insulated with materials like polyethylene (PE) or polypropylene (PP) to prevent short circuits and cross-talk between wires. Data wires are often arranged in twisted pairs to reduce electromagnetic interference and maintain signal integrity. Twisting the wires helps cancel out noise and interference from external sources.
The core of the cable consists of multiple conductors, typically made of copper for excellent conductivity. Each conductor is responsible for carrying specific signals, such as power, data, or video. The positive and negative wires are critical components, responsible for delivering power and managing data transmission. Here's how they are integrated into the cable structure:
The positive wire carries electrical power from the source to the connected device. Made of high-conductivity materials like copper, it is insulated with durable plastic to avoid electrical shorts. The positive wire connects to the VBUS pin in the USB-C connector, which supplies power to the device.
Both the positive and negative wires are essential for power delivery and data communication. The negative wire provides the return path for the electrical current, completing the power circuit. Importantly, power and data transmission occur on separate lines; the positive wire connects to the VBUS pin, while the negative wire connects to the Ground (GND) pins, ensuring proper grounding and stability for data signals.
Which Wires Are Positive And Negative In Usb C?
In USB-C cables, the positive and negative wires are vital for carrying power and completing the electrical circuit. Identifying these wires can sometimes be done through color coding, though this varies between manufacturers. Below, we'll discuss common standards and methods for identifying these wires.
USB Wire Color Coding:
A typical USB cable contains four wires: two for power delivery and two for differential serial data signals, enabling data transfer. With the advent of USB 3.0, cable design has grown more complex, incorporating ten wires in total, including two additional differential pairs (each with three wires).
When you remove the outer shield of a USB cable, you'll often see exposed wires in various colors. These color-coded wires serve distinct purposes:
- Red wire: This wire carries the positively-charged electric power, providing a direct current supply.
- Black wire: This is the ground wire, serving as the return path for the electrical current.
- White wire: This wire is used for the positive data signal (D+).
- Green wire: This wire is responsible for the negative data signal (D-).
In some USB cables, you might encounter a different set of color-coding:
- Orange wire: Functions similarly to the red wire, carrying the positive power.
- White wire: Acts as the ground wire.
- Green wire: Used for the D+ data signal.
- Blue wire: Used for the D- data signal.
Since not all USB-C cables follow the same color-coding scheme, it's crucial to consult the cable's documentation or markings for accurate identification. While red and black are commonly used for positive and negative wires, some USB-C cables may employ different colors or additional color coding to distinguish various functions and signal lines within the cable. For instance, data wires and other signal lines may have their own specific color codes. For detailed USB C cable wiring diagrams and color codes, visit our corresponding blog.
Why Is It Crucial to Ensure Correct Polarity in USB C Cables?
Ensuring the correct polarity in USB-C cables is vital for several reasons, primarily concerning the safe and efficient functioning of devices. Polarity refers to the proper orientation of the positive and negative wires within the cable, which is essential for correct power delivery and data transmission. When the cable polarity is correct, devices receive the power they need in the manner they are designed to handle, preventing damage to sensitive electronic components. Incorrect cable polarity can cause short circuits, overheating, or even catastrophic failure, as devices are not built to handle reversed electrical flows. This can lead to immediate and severe damage to both the power source and the connected device, potentially rendering them inoperable.
Moreover, correct cable polarity ensures operational efficiency by providing a stable and consistent power supply. Devices rely on this stability to function reliably and maintain performance over time. Incorrect polarity can cause devices to malfunction or behave unpredictably, disrupting normal operations.
Additionally, USB-C cables are used not just for power but also for data transmission. Proper polarity is essential for maintaining the integrity of data signals, ensuring reliable and accurate data transfer between devices. Incorrect polarity can corrupt or lose data, particularly in applications where data accuracy is critical.
The potential consequences of incorrect wiring are significant and multifaceted. Improper polarity can result in permanent damage to electronic components and may lead to short circuits, posing fire hazards, especially in environments with flammable materials. Overheating due to excessive current flow is another risk, potentially causing burns or fires. Data integrity is also jeopardized; incorrect polarity can disrupt data transfer, resulting in corrupted files or incomplete data transmission, a critical concern in professional or industrial settings. Furthermore, devices damaged by incorrect polarity often fall outside warranty coverage, leading to additional costs for repairs or replacements. This lack of support can leave users without assistance in resolving the issues caused by improper wiring.
What Factors Affect the Quality of USB Positive and Negative Electrode Wires?
The quality of positive and negative electrode wires in USB-C cables, or any electrical cables, is influenced by several factors. These factors determine the overall performance, durability, and safety of the cables. Here are some key considerations:
- Material Composition
- Manufacturing Process
- Shielding and Protection
- Electrical Characteristics
- Environmental Resistance
- Compliance and Standards
The primary material used for the conductors significantly affects the quality. Copper is commonly used due to its excellent electrical conductivity and flexibility. High-purity copper ensures lower resistance and better performance. In some cases, silver-plated copper may be used for even better conductivity.
The materials used to insulate the wires are crucial for preventing electrical shorts and maintaining signal integrity. Common insulation materials include PVC (Polyvinyl Chloride), polyethylene (PE), and polypropylene (PP). The quality of these materials affects the cable’s flexibility, durability, and resistance to environmental factors.
The precision with which the wires are manufactured impacts their performance. Consistent wire diameter and uniform insulation thickness are important for maintaining reliable electrical characteristics and preventing weak points that could lead to failure.
For data integrity and reduced electromagnetic interference (EMI), the way wires are twisted and paired is crucial. Twisted pairs help cancel out noise and maintain signal quality. The tightness and consistency of these twists can impact performance.
Effective shielding is necessary to protect the wires from electromagnetic interference (EMI) and radio frequency interference (RFI). High-quality cables often use a combination of braided shielding and foil shielding to provide robust protection. The materials and construction of the shielding affect its effectiveness.
The outer jacket of the cable provides physical protection to the internal wires. Materials like PVC or TPE (Thermoplastic Elastomer) are used for their durability and flexibility. The quality of the outer jacket affects the cable’s resistance to wear, abrasion, and environmental factors.
The electrical resistance of the wires should be low to ensure efficient power delivery and minimal energy loss. High resistance can lead to heating and reduced performance. The purity of the conductor material and the cross-sectional area of the wires are critical factors here. These electrical properties can affect signal quality, especially in high-speed data transmission. Proper cable design to minimize unwanted capacitance and inductance is important for maintaining signal integrity.
The ability of the wires to withstand varying temperatures without degrading is important for both safety and performance. High-quality materials and manufacturing processes ensure that cables can operate reliably over a wide temperature range. Exposure to moisture and chemicals can degrade the insulation and conductors. High-quality cables use materials that offer resistance to these factors, ensuring longevity and reliability in various environments.
Compliance with industry standards (such as USB-IF certification for USB cables) ensures that the cables meet certain performance and safety benchmarks. Adherence to these standards is a good indicator of quality. Rigorous testing during and after the manufacturing process helps ensure that the cables meet quality standards. This includes testing for electrical performance, durability, and resistance to environmental factors.
Thus, the quality of both the power positive and negative wires, as well as the data positive and negative wires, determines the overall performance of the cable. It underscores the importance of adhering to standards and conducting thorough testing to guarantee reliable and high-quality products that meet the needs of users across various applications and environments.
What Are the Methods to Detect the Positive and Negative Wires of USB C?
We all know that USB-C cables usually include multiple wires dedicated to power delivery and data transfer. Vbus (positive power), GND (ground power line), D+ and D- (basic USB2.0 data transfer differential pair), RX and TX pins (super-speed data transfer differential pair) are all positive and negative in nature. These wire cores are used to transmit positive and negative power and data between devices.
In today’s world of countless devices, it is crucial to know how to correctly identify the positive and negative wires of USB-C. Whether you're tinkering with gadgets, making custom cables, or just ensuring the reliability of the connection, understanding the complexity of USB-C wiring can save you a lot of trouble. Let’s dive into the practical methods of detecting the positive and negative wires of USB-C to ensure that you can confidently connect your devices without any accidents.
Multimeter Magic:
A multimeter is the best helper to identify USB-C cables. Here’s how to use it:
- Set up the multimeter: Adjust the multimeter to the DC voltage setting.
- Probe Placement: Carefully place the red probe on the Vbus pin and the black probe on the GND pin.
- Read the voltage: If the voltage reads positive, congratulations, you have found the positive (Vbus) and negative (GND) wires.
This method is simple and reliable and ensures that you can easily distinguish between the positive and negative power wires. Using a multimeter can also help identify basic USB 2.0 data transfer lines:
- Set the multimeter to continuity mode: Most multimeters have a mode that will beep when there is continuity.
- Probe Placement: Place one probe on the D+ pin of the USB-C connector and the other probe on one of the internal wires.
- Listen for the beep: The wire that caused the multimeter to beep is the D+ wire.
- Repeat for D-: Similarly, place the probe on the D- pin and test the remaining wires.
Using continuity mode helps ensure that you can identify the correct data wire without an active connection.
Continuity Test:
The continuity test helps you identify the ground (GND) wire in the USB-C cable. Follow these steps:
- Set the multimeter to continuity mode: This mode is usually indicated by a sound wave symbol.
- Touch the probes together: You should hear a beep, indicating that the multimeter is working properly.
- Probe the wires: Place one probe on the metal shell of the USB-C connector (connected to GND) and the other probe on each wire in turn. The wire that causes the multimeter to beep is the ground wire (GND).
This method is particularly convenient because it does not require powering the cable, ensuring safety while testing.
Wire Color Coding:
While not as reliable as using a multimeter, wire color coding can sometimes help identify the positive and negative wires. Typically, the color code is:
- Red: Positive power (Vbus)
- Black: Ground (GND)
- Green/white: Data wires (D+ and D-)
- RX/TX pair (USB 3.0+ High-speed data): typically blue and yellow, orange and green, etc.
However, wire colors may vary between manufacturers, so be sure to use a multimeter or oscilloscope to verify accuracy.
Using an Oscilloscope:
To more accurately identify the USB data positive and negative lines, especially for USB 3.0 and higher speed data lines (RX and TX):
- Connect the USB-C cable to the powered device: Make sure the device is turned on and the USB-C port is active.
- Connect the oscilloscope probe: Connect the oscilloscope probe to the suspected data line, and the oscilloscope can display the signal waveform of data transmission.
- Observe the waveform: D+ and D- will show the differential data signal at lower speeds (USB 2.0 up to 480 Mbps). The RX and TX pair (for USB 3.0 and above) will show high-speed differential signals (up to 5 Gbps or more).
The oscilloscope allows you to visually confirm the data transmission characteristics to ensure that you correctly identify the data line.
USB-C Pinout Diagram:
Referencing the USB-C pinout diagram can provide a visual guide to identify the function of the wires. The symmetrical design of the USB-C connector makes the pinout a bit tricky, but the diagram can clarify which pins correspond to the power and data lines. You can find reliable pinouts in our USB-C Pinout Specification document.
Think of your USB-C cable as a complex dance partner. Think of the data lines as the nervous system of the USB-C cable and the power lines as the muscles. Each line has a specific role, transmitting important information to keep your devices in sync. With the right tools and techniques, you can decode this complex dance and ensure your devices communicate smoothly and efficiently.
By adopting these methods, you will not only master the art of detecting the positive and negative USB-C wires, but also improve the life and performance of your devices. Have fun, and may your connections always be strong and reliable!
APPHONE’s Commitment to Quality
At APPHONE, we ensure our USB-C cables meet the highest quality standards through rigorous testing and meticulous manufacturing processes. We use high-purity copper cores in our cables to guarantee excellent electrical conductivity and durability. Our pin designs are meticulously crafted to ensure a secure and reliable connection, reducing the risk of wear and tear. Throughout the production process, we conduct multiple quality checks to ensure that every cable meets our strict standards.
Read More: APPHONE USB Cable Manufacturing Process.
Our USB cables embody our unwavering commitment to quality, setting a standard of excellence across our entire product line. From USB data cables to adapters, fast chargers, audio headsets, and car chargers, each item reflects our dedication to innovation and customer satisfaction.
Understanding the positive and negative wires in USB-C cables is essential for ensuring safe and effective device charging and data transfer. By using methods like visual inspection, multimeter testing, and professional equipment, you can accurately identify and troubleshoot these wires.
At APPHONE, we pride ourselves on delivering high-quality USB-C cables and accessories. Our rigorous testing and innovative manufacturing processes ensure that our products meet the highest standards of quality and reliability. Whether you need USB data cables, adapters, fast chargers, or other accessories, we have a solution tailored for you.
What Are the 4 Wires in a Phone Charger?
A typical USB phone charger cable contains four wires:
- Red: Positive power (V+)
- Black: Ground (V-)
- Green: Data positive (D+)
- White: Data negative (D-)
These wires handle charging and data transfer functions.
Does a Type-C Charger Have Red and Black Wires?
USB-C cables can vary, but they often contain multiple internal wires, including power and data lines. While traditional color coding like red for positive and black for negative may not apply universally, USB-C cables are designed with specific power delivery and data transfer protocols. It’s best to refer to the cable’s documentation or use a multimeter for precise identification.
What Is Positive and Negative About a 12v Cable?
Usually; there is a red wire positive or black w/red stripe. And/or the clip has a Plus-sign (+) cut in it. Occasionally; Both wires Black and a red Sheath on positive clip. Black on negative.
What Is the Negative and Positive Wire Symbol?
When using positive and negative numbers we put a + sign in front of positive numbers and a - sign in front of negative numbers. If there is no sign in front of a number it typically means that the number is positive.
